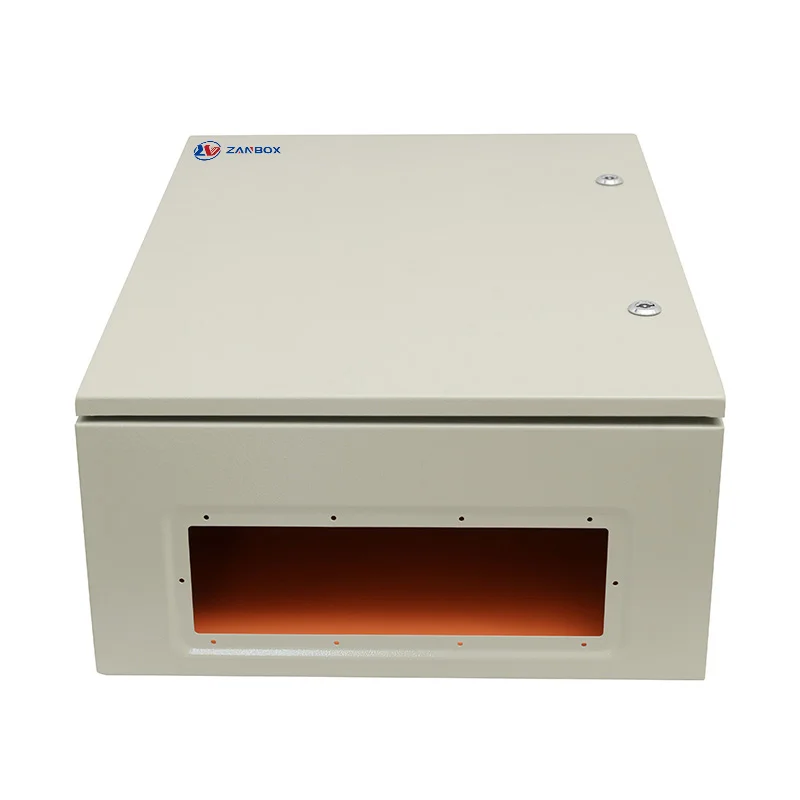

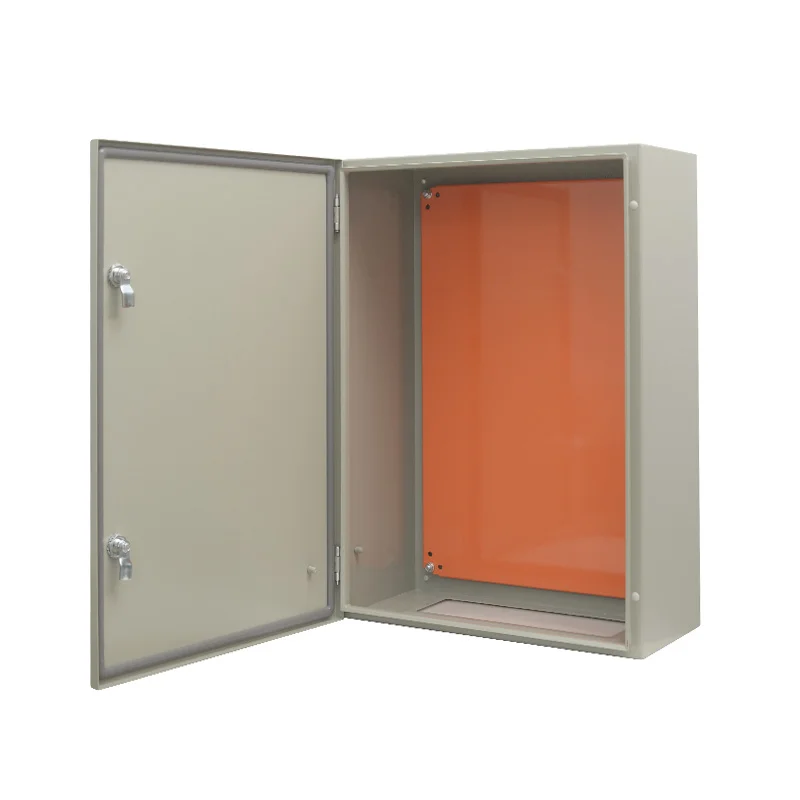

ZANTT-2515 Waterproof Distribution Box

ZANTT IP66 enclosure made of cold rolled steel with epoxy polyester coating, zinc alloy hinges, CE certified to IEC 60529, robust protection for industrial electrical equipment, wall or floor mountable.
Get a Free Quote

Introduction

· The ZANTT range of enclosures are the best available on the market.
· A well engineered project which has been continuously updated and improved has created
a wide range of possible variations, Enclosures are available in portrait, landscape and 2 door
congurations.
· The main characteristic of the enclosures is the robust construction achieved by a careful
mix of design, automated production system and top quality materials, including:
– High performance technology used for locking systems and hinge pins.
– Zinc alloy for hinges.
– Thermosetting epoxy polyester powder coating for nishes.
– Sheet steel.

Technical specications

  • Standard: IEC60529
  • Certicate: CE
  • Material: high-quality cold roll steel
  • Color: Ral7032 or Ral7035
  • Mounting plate: Orange or Galvanized
  • Paint nish: Both externally and internally protected with epoxy polyester coating
  • Lock: Plastic or Metal
  • Body and door thickness: 1.0-1.5mm
  • Mounting plate thickness: 1.2-2.0mm
  • IP rate: IP66

2 4 5

Overall Dimension

Model H W D 厚度
mm mm mm Door/mm Body/mm M.P/mm
ZANTT2215 200 200 150 1.2 1.2 2
 ZANTT2515 250 200 150 1.2 1.2 2
ZANTT2315 300 200 150 1.2 1.2 2
ZANTT2320 300 200 200 1.2 1.2 2
ZANTT25315 300 250 150 1.2 1.2 2
ZANTT25320 300 250 200 1.2 1.2 2
ZANTT3315 300 300 150 1.2 1.2 2
ZANTT3320 300 300 200 1.2 1.2 2
ZANTT3325 300 300 250 1.2 1.2 2
ZANTT3415 400 300 150 1.2 1.2 2
ZANTT3420 400 300 200 1.2 1.2 2
ZANTT3425 400 300 250 1.2 1.2 2
ZANTT4415 400 400 150 1.2 1.2 2
ZANTT4420 400 400 200 1.2 1.2 2
ZANTT4425 400 400 250 1.2 1.2 2
ZANTT3515 500 300 150 1.2 1.2 2
ZANTT3520 500 300 200 1.2 1.2 2
ZANTT3530 500 300 300 1.2 1.2 2
ZANTT4515 500 400 150 1.2 1.2 2
ZANTT4520 500 400 200 1.2 1.2 2
ZANTT4525 500 400 250 1.2 1.2 2
ZANTT4530 500 400 300 1.2 1.2 2
ZANTT5515 500 500 150 1.2 1.2 2
ZANTT5520 500 500 200 1.2 1.2 2
ZANTT5525 500 500 250 1.2 1.2 2
ZANTT4615 600 400 150 1.2 1.2 2
ZANTT4620 600 400 200 1.2 1.2 2
ZANTT4625 600 400 250 1.2 1.2 2
ZANTT4630 600 400 300 1.2 1.2 2
ZANTT5615 600 500 150 1.2 1.2 2
ZANTT5620 600 500 200 1.2 1.2 2
ZANTT5625 600 500 250 1.2 1.2 2
ZANTT5630 600 500 300 1.2 1.2 2
ZANTT6615 600 600 150 1.2 1.2 2
ZANTT6620 600 600 200 1.2 1.2 2
ZANTT6625 600 600 250 1.2 1.2 2
ZANTT4720 700 400 200 1.2 1.2 2
ZANTT4730 700 400 300 1.2 1.2 2
ZANTT5715 700 500 150 1.2 1.2 2
ZANTT5720 700 500 200 1.2 1.2 2
ZANTT5725 700 500 250 1.2 1.2 2
ZANTT5730 700 500 300 1.2 1.2 2
ZANTT6720 700 600 200 1.2 1.2 2
ZANTT6725 700 600 250 1.2 1.2 2
ZANTT6820 800 600 200 1.5 1.5 2
ZANTT6825 800 600 250 1.5 1.5 2
ZANTT6830 800 600 300 1.5 1.5 2
ZANTT8820 800 800 200 1.5 1.5 2
ZANTT8825 800 800 250 1.5 1.5 2
ZANTT8830 800 800 300 1.5 1.5 2
ZANTT6 1020 1000 600 200 1.5 1.5 2
ZANTT6 1025 1000 600 250 1.5 1.5 2
ZANTT6 1030 1000 600 300 1.5 1.5 2
ZANTT8 1020 1000 800 200 1.5 1.5 2
ZANTT8 1025 1000 800 250 1.5 1.5 2
ZANTT8 1030 1000 800 300 1.5 1.5 2
ZANTT8 1040 1000 800 400 1.5 1.5 2
ZANTT10 1025 1000 1000 250 1.5 1.5 2
ZANTT10 1030 1000 1000 300 1.5 1.5 2
ZANTT6 1220 1200 600 200 1.5 1.5 2
ZANTT6 1225 1200 600 250 1.5 1.5 2
ZANTT6 1230 1200 600 300 1.5 1.5 2
ZANTT8 1220 1200 800 200 1.5 1.5 2
ZANTT8 1225 1200 800 250 1.5 1.5 2
ZANTT8 1230 1200 800 300 1.5 1.5 2
ZANTT10 1225 1200 1000 250 1.5 1.5 2
ZANTT10 1230 1200 1000 300 1.5 1.5 2
ZANTT10 1240 1200 1000 400 1.5 1.5 2
ZANTT12 1225 1200 1200 250 1.5 1.5 2
ZANTT12 1230 1200 1200 300 1.5 1.5 2
ZANTT6 1430 1400 600 300 1.5 1.5 2
ZANTT8 1430 1400 800 300 1.5 1.5 2
ZANTT10 1430 1400 1000 300 1.5 1.5 2
ZANTT10 1440 1400 1000 400 1.5 1.5 2
ZANTT12 1430 1400 1200 300 1.5 1.5 2
