Technical specications
- Standard: IEC60439-3 IEC61000
- Approval: CE, RoHS, HF test, IK test, ISO9001

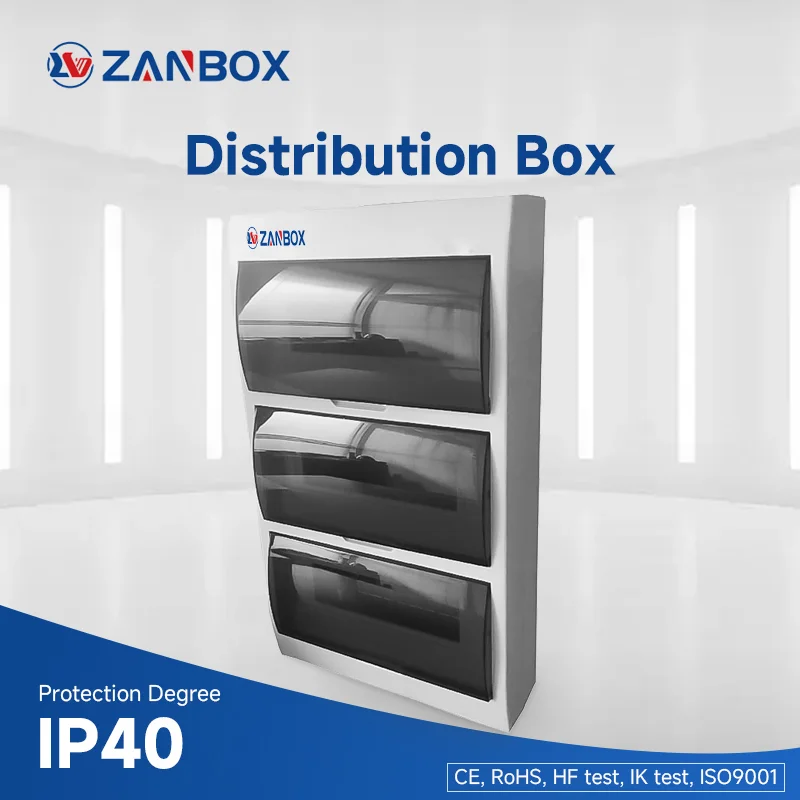

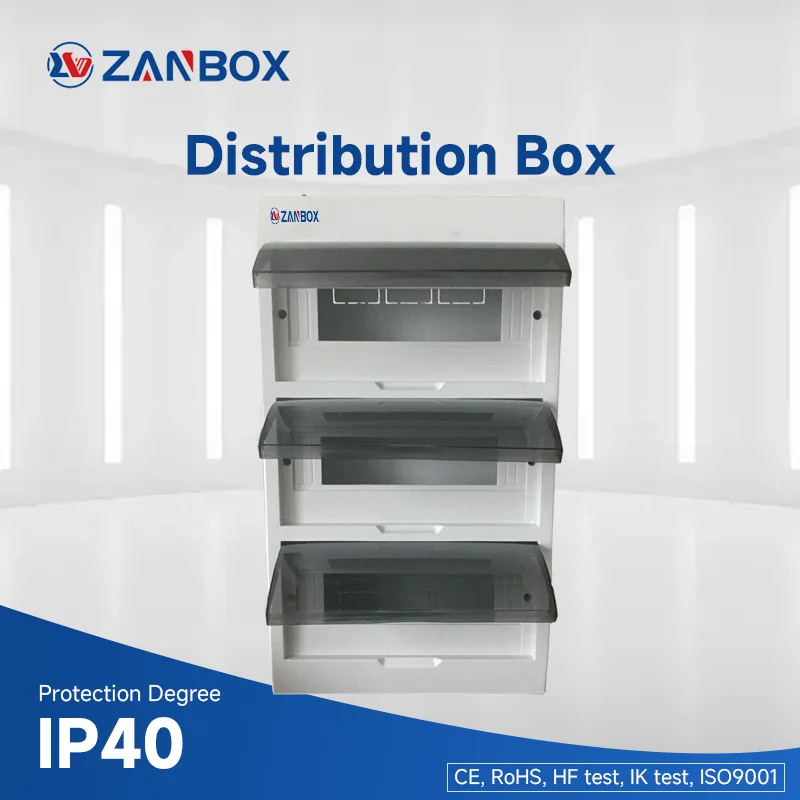

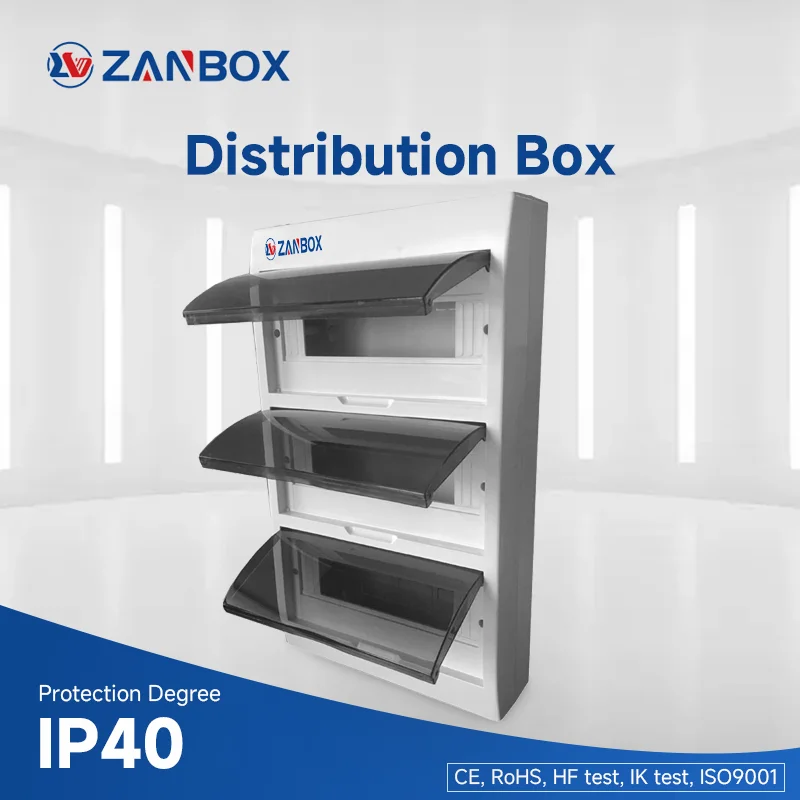

- Protection degree: IP40
- Material: ABS for body and PC for door
- Ambient temperature (°C ): -5~+40, 50%humidity permitted under max +40°C
- Storage temperature (°C ): -40~+75
- Color of base: White
- Color of door: transparent or white opaque
- Fire resistence: 650°C/30s, 960°C/30s
Overall Dimension
| Model | Overall Dimension | Faceplate Height | ||
| L | W | H | ||
| ZANS-2 way | 49 | 130 | 85 | |
| ZANS-3 way | 111 | 200 | 93 | 87 |
| ZANS-4 way | 148 | 200 | 97 | 91 |
| ZANS-6 way | 184 | 200 | 96 | 56 |
| ZANS-8 way | 220 | 200 | 92 | 67 |
| ZANS-10 way | 254 | 200 | 96 | 58 |
| ZANS-12 way | 310 | 200 | 97 | 61 |
| ZANS-15 way | 362 | 219 | 97 | 59 |
| ZANS-18 way | 271 | 324 | 98 | 59 |
| ZANS-24 way | 269 | 457 | 100 | 55 |
